FSM330~FSM340P72 (330W/335W/340W) Typical 72 Cells Poly Crystalline Solar PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)
| Module Type | FSM330P72 | FSM335P72 | FSM340P72 |
| Maximum Power-Pmax (Wp) | 330 | 335 | 340 |
| Voltage at Maximum Power-Vmp (V) | 37.7 | 37.9 | 38.1 |
| Current at Maximum Power-Imp (A) | 8.75 | 8.86 | 8.92 |
| Open Circuit Voltage-Voc (V) | 46.3 | 46.5 | 46.6 |
| Short Circuit Voltage-Isc (A) | 9.45 | 9.55 | 9.64 |
| Module Efficiency-ηm (%) | 17.0% | 17.3% | 17.5% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+3% |
| Temperature Coefficients of Pmax | -0.40%/℃ |
| Temperature Coefficients of Voc | -0.31%/℃ |
| Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
| Cell Type | Poly Crystalline 157×157mm |
| No. of Cells | 72 (6×12) |
| Dimension | 1956×992×35mm |
| Weight | 20.5 Kg |
| Junction Box | IP68, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible (Optional) |
| Packing | 31PCS/Pallet, 748PCS/40’HC |
Descriptions of FINERGY
1. FINERGY only sources raw materials from Tier1 suppliers which passed the strict tests in our own factory laboratory. We have to provide dependable quality products to customers as well as reliable long period warranties.
2. FINERGY has accumulated rich experience of solar panels manufacturing. We also cooperates with design and research institutes to study and develop new technology adopted on solar panels for efficiency improvement.
3. FINERGY made large investments on automatic equipment and production lines since 2016. The advanced quality inspection facilities are combined with production lines together. Besides this, advanced MES system was applied online to manage and record products information. It's available for us to save waste and improve production capacity.
4. FINERGY has 6 production lines in factory now. The annual production capacity has reached 800MW now. Hundreds MW of solar panels are produced and shipped from us every year. The proven products have been installed in more than 40 countries all over the world.
5. FINERGY already set up sales networks in Asia, Middle East, Europe and South America. The customers can benefit from our collaborations depending on higher quality, price/ performance ratio.
Key Features of Raw Materials
1. Glass
Anti-reflective coating to increase module efficiency up to 2%. Light transmittance improvement more than 3%. New technology adopts on surface to improve self-cleaning ability.
2. Backsheet
Outstanding weatherproof performance. Low moisture permeability against snail trail defect. Excellent electric insulation for high system voltage up to 1500V. White and black color is optional.
3. Solar Cell
Monocrystalline solar cells from gallium doped wafers adopt PERC technology for higher power efficiency. Stable performance output even in weak light environment. PID free treatment.
4. EVA/POE Film
Light transmittance above 92%. Snail trail prevention treatment. UV resistance against ageing.
5. Junction Box
IP68 protection grade. High quality diodes for electric safety and protection of whole solar power system. 4mm² PV wires with MC4 compatible connectors for easy installation. 1500V system voltage available.
6. Aluminum Frame
Anodic oxidation layer resistant to chemical corrosion. Strong mechanical load resistance up to 5400Pa. Silver and black color is optional.
Production Workshop

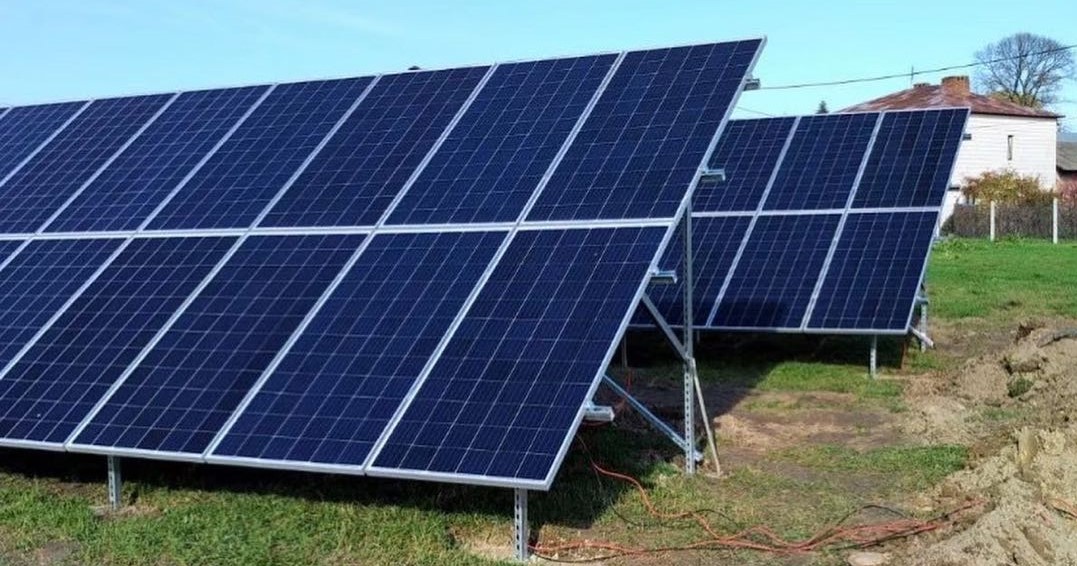

Sucessful Case
